I designed these rudder pedals to be bolted to the underside of a racing rig pedal plate.

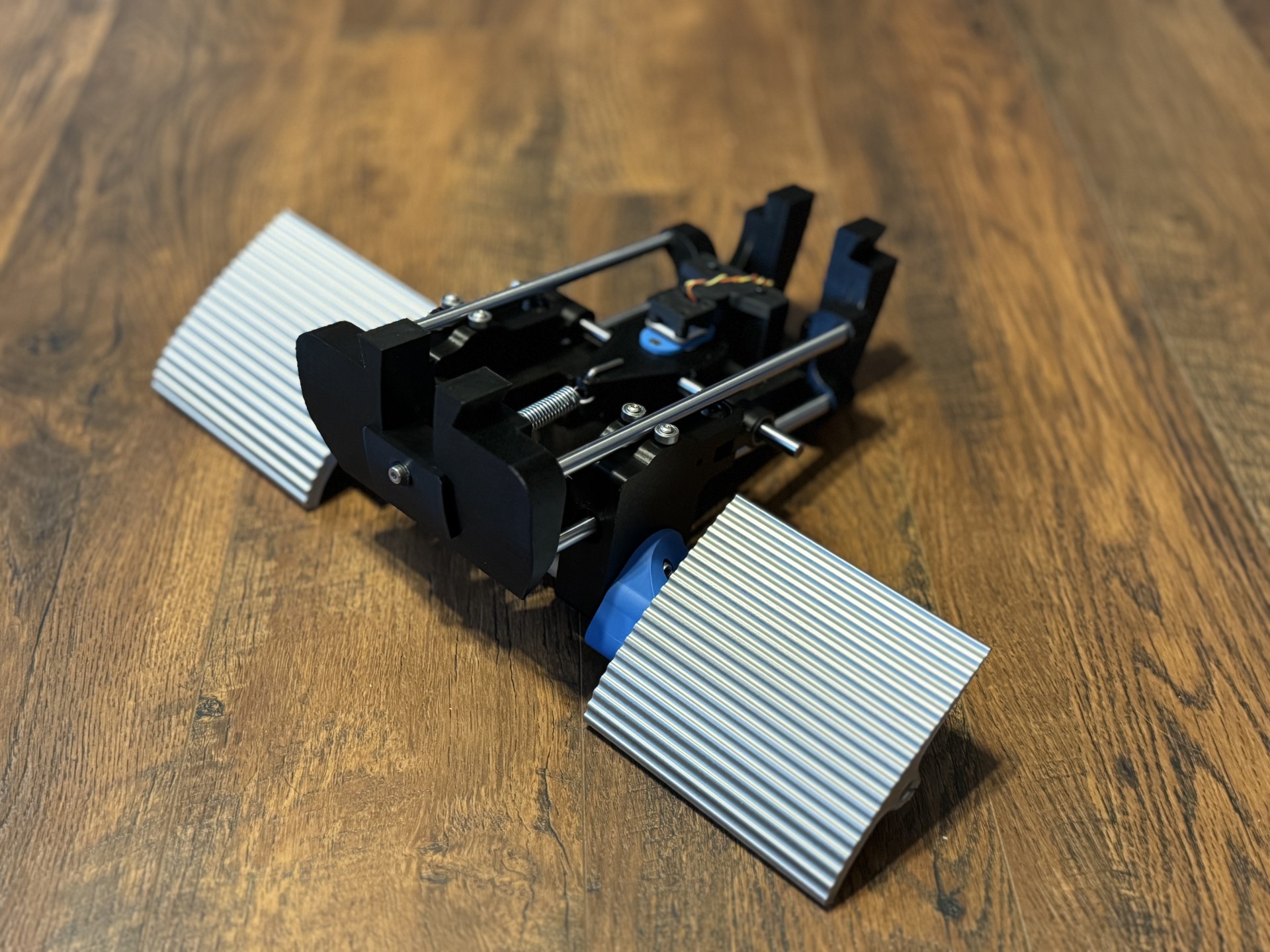

thumbnail_IMG_1341

Features

  • 3D printed, with 8mm linear rod and bearings
  • toe brakes and rudder control
  • AS5600 magnetic position sensors on all three axis
  • adjustable pedal angle
  • easy install/removal, two bolts and it slides out
  • USB-C

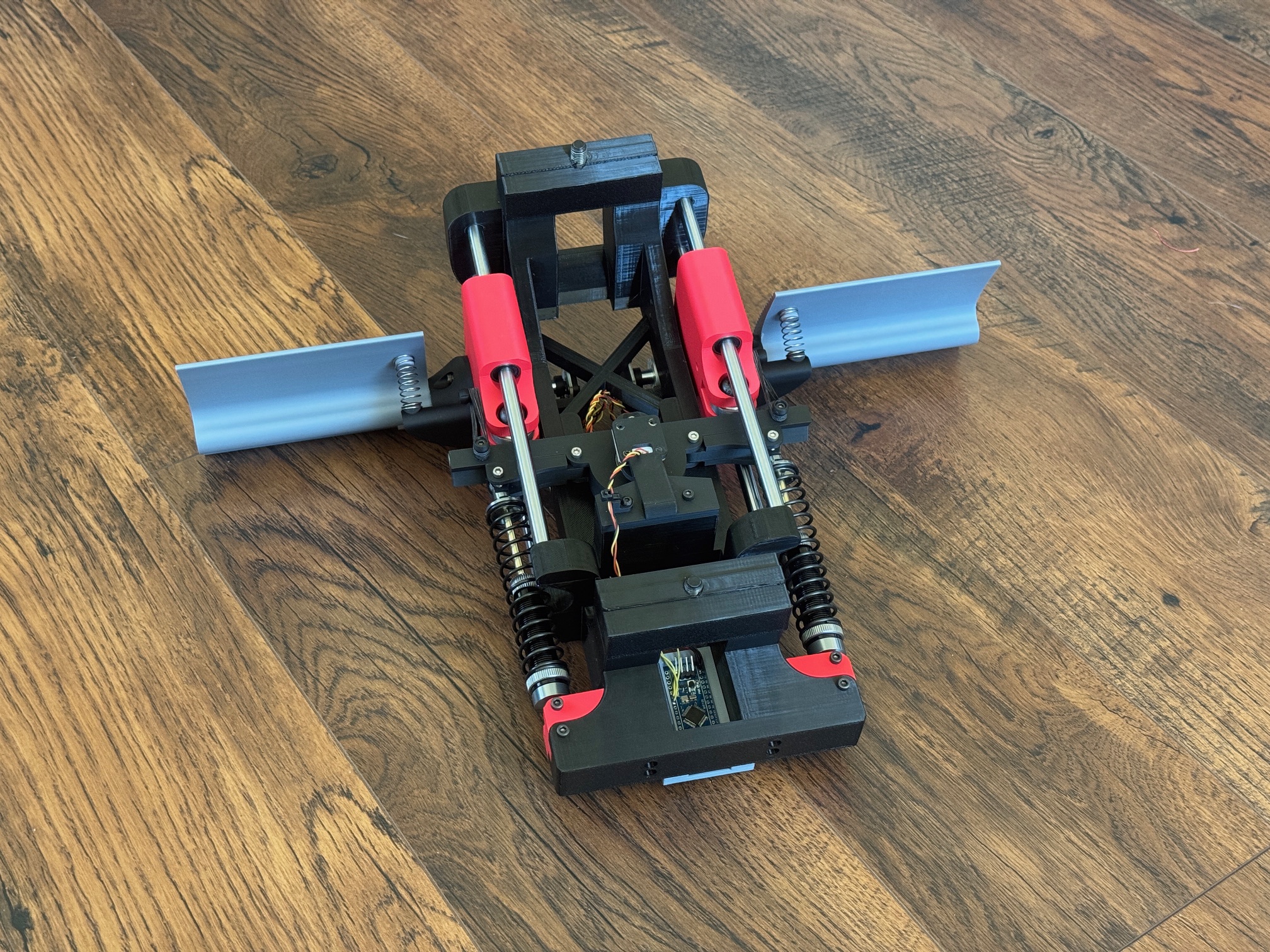

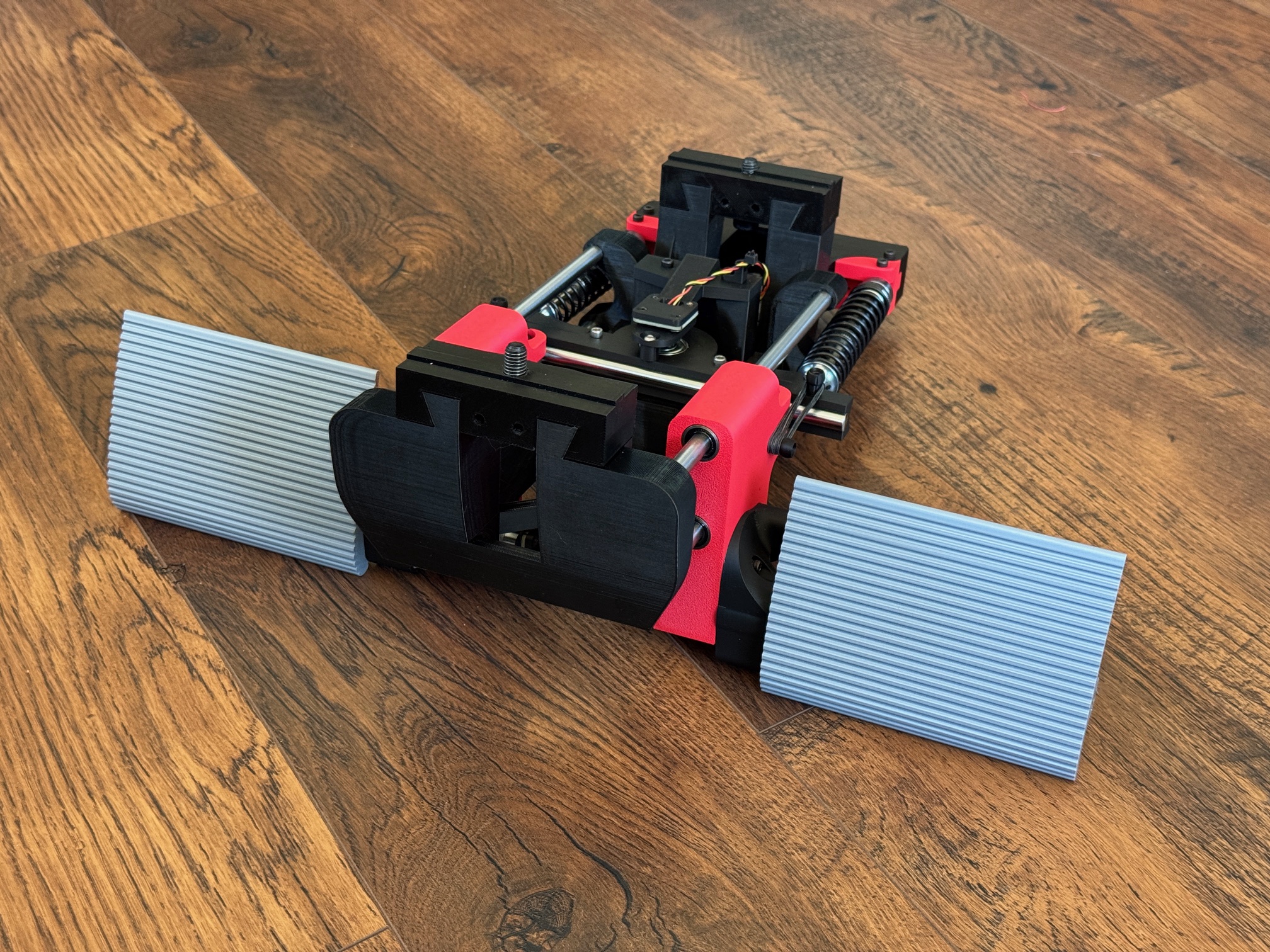

Mk. 8 is simpler and cheaper to build and has the potential for variable/motorized centering force.

Possible enhancements

  • electro-mechanical release of centering force for rotary flight
  • experiment with a stepper motor for providing the centering force. This could also provide force feedback

Previous Iterations

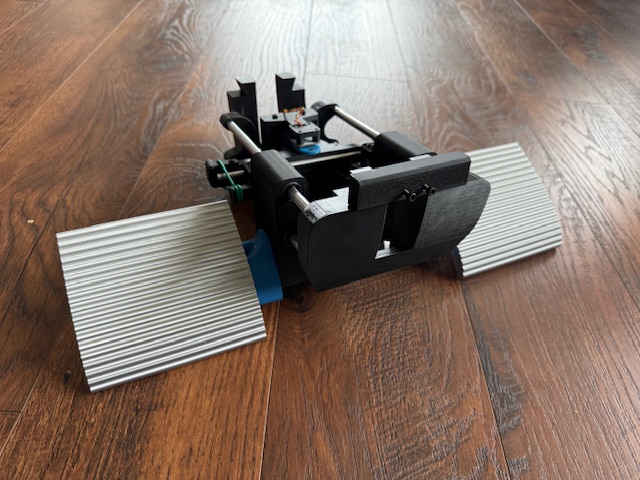

Mk. 7

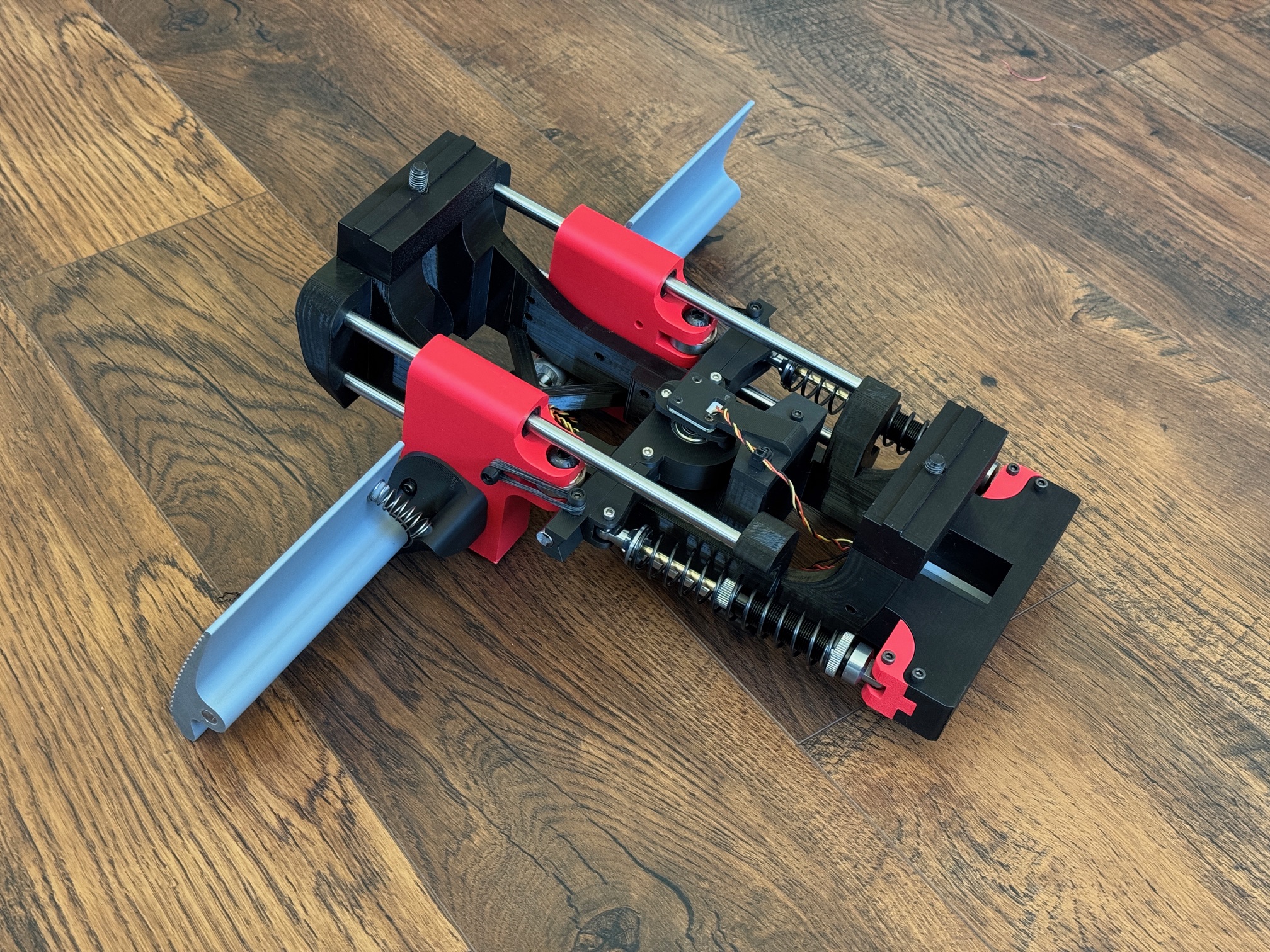

Excellent pedals! Did not center well, very difficult to adjust the centering force and impossible to release it completely.

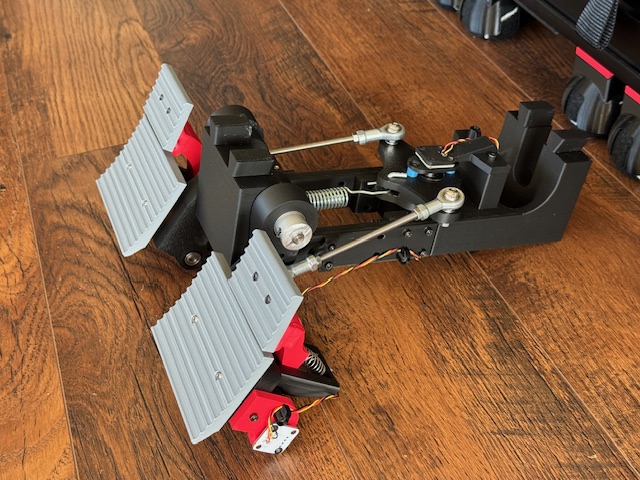

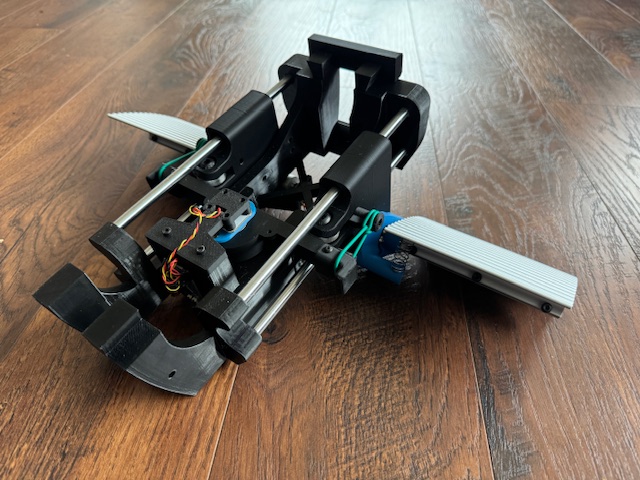

Mk. 6

Evolution of Mk. 4, but with separate toe brakes. Immediately after I finished them, I realized my mistake with Mk. 5…

Mk. 5

Really nice, felt like I was getting somewhere but hard to use the toe brakes and a bit heavy to use.

A video of the pedals installed and working:

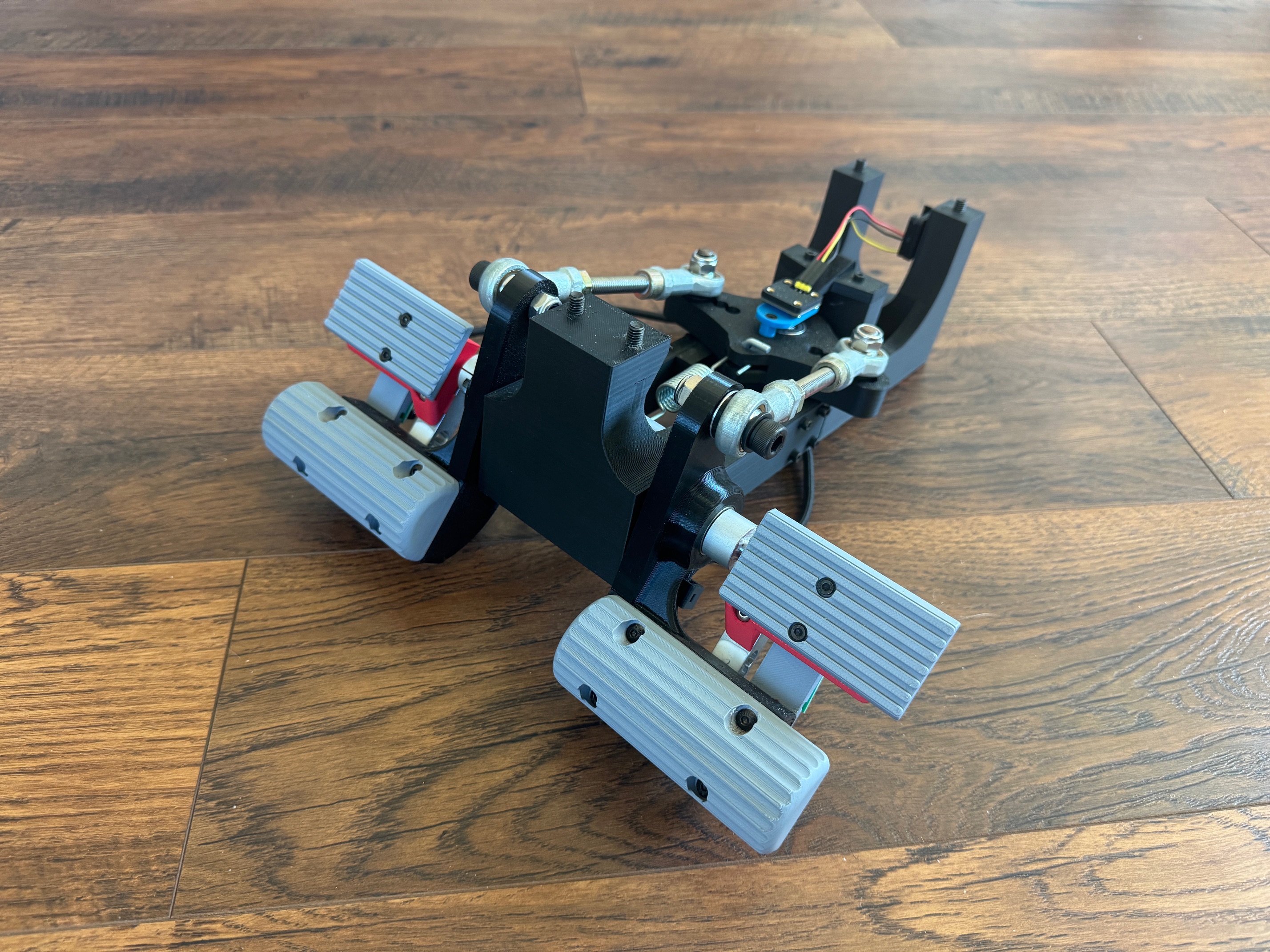

Mk. 4

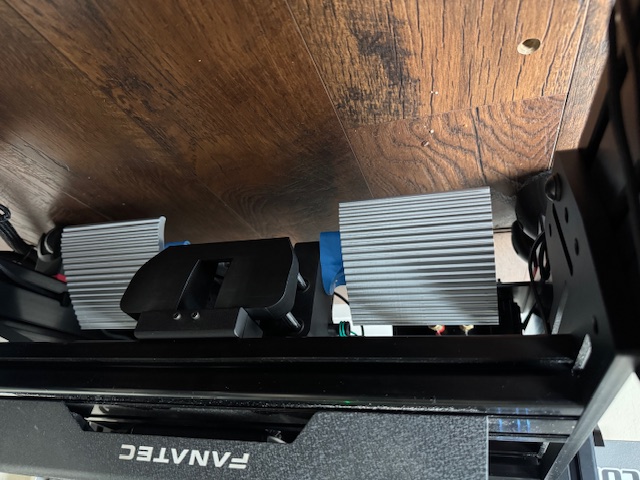

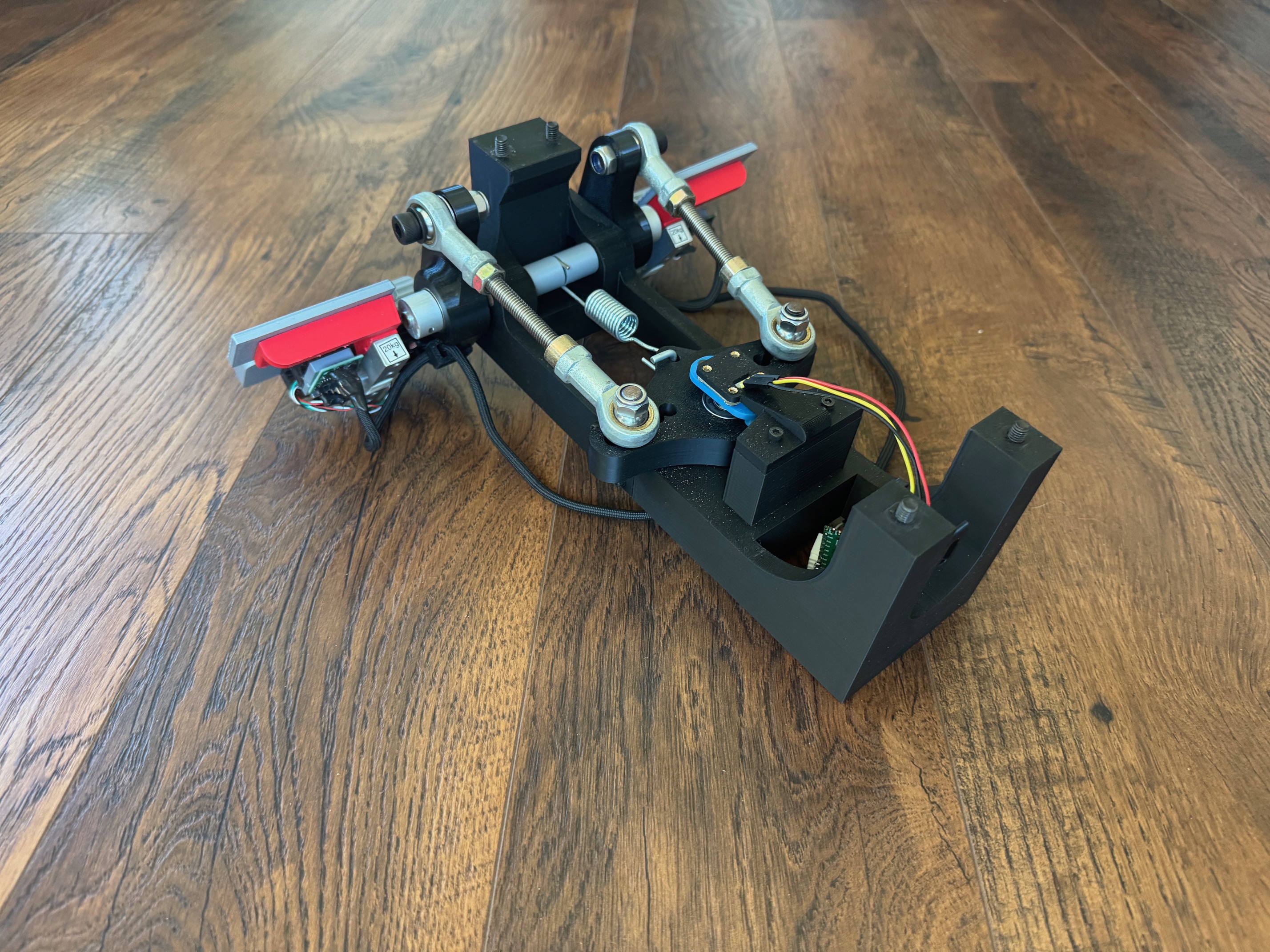

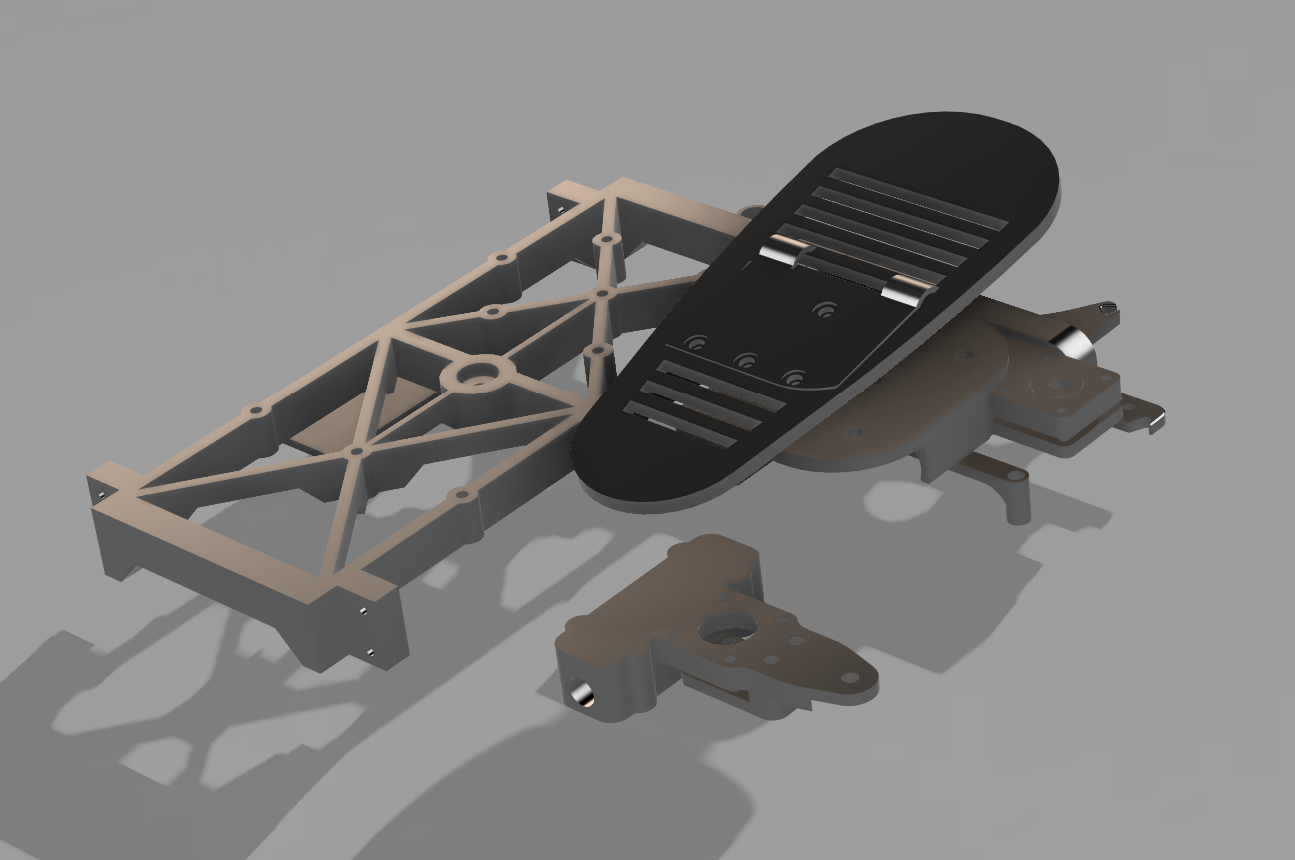

I hacked brakes onto Mk. 3 using load cells (pictured) and although they work they don’t have very good feel.

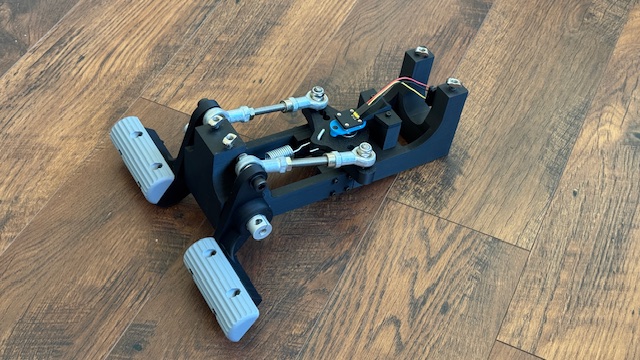

Mk. 3

The rudder control works really well, but I didn’t include brakes.

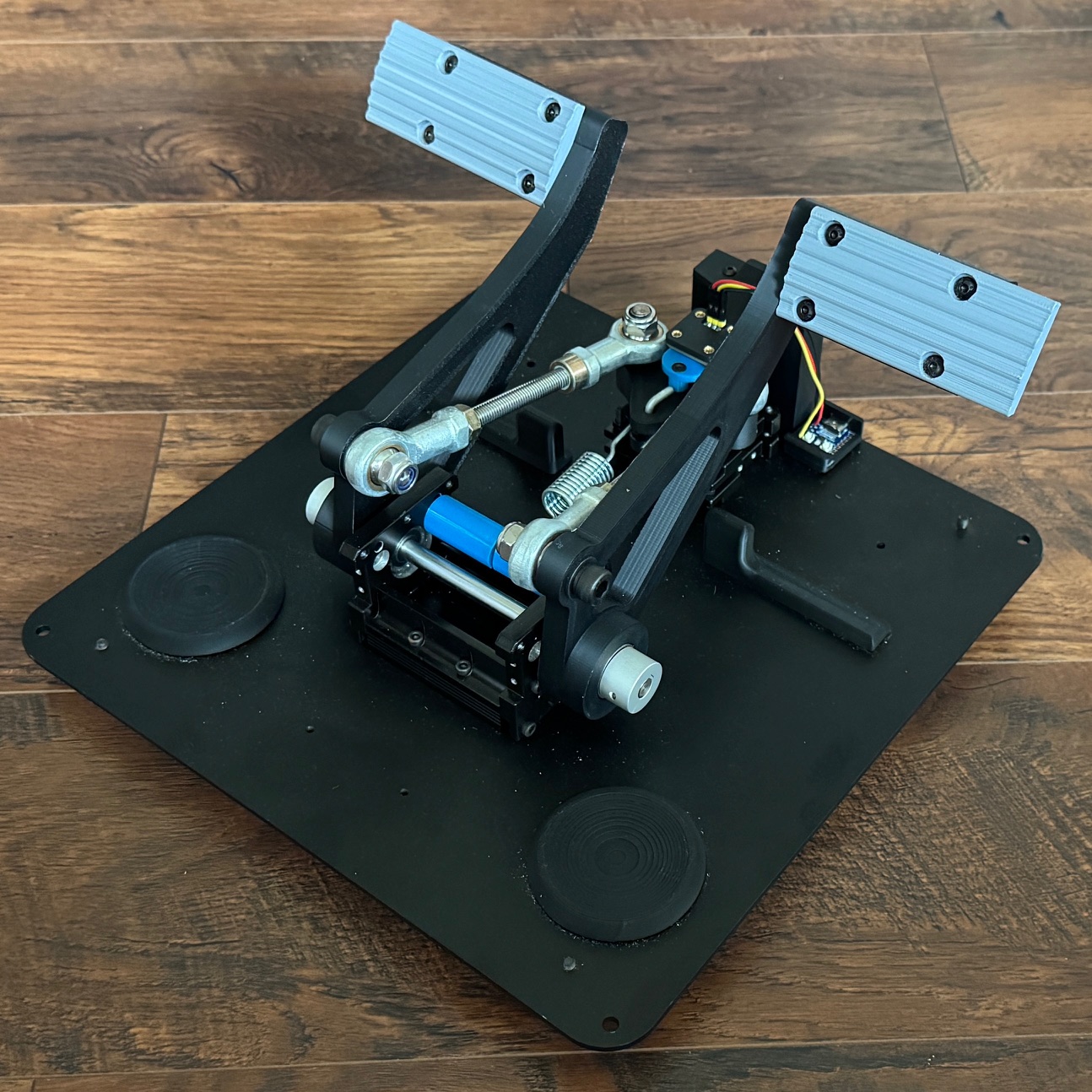

Mk. 2

These felt awful…

Mk. 1

Nope.
