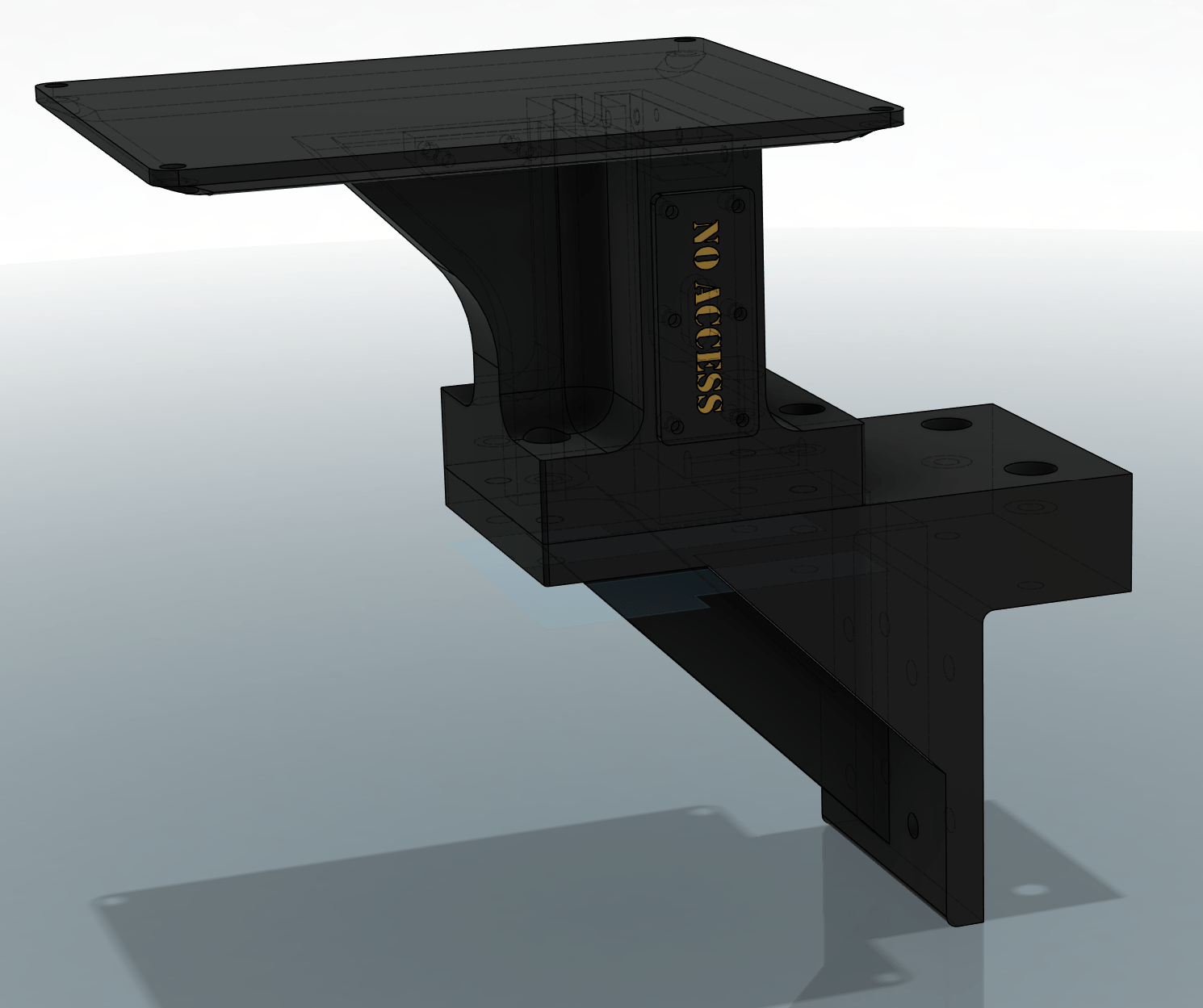

  • Bolts together, needs no support. Print with 5 or 6 walls. Infill 15%. PLA is fine.
  • Unbolt the bottom plate on the throttle, reuse the same bolts to attach it to the bracket (leave the bottom plate on)
  • It has a channel for the USB cable
  • It was built to use what I had on hand. Easily modifiable to use straight through nuts and bolts instead of heatset nuts and it could also be tweaked to use on M6 30mm.
  • The NO ACCESS hatch is there to cover an accessory mount point, I had a touchpad platform attached at one point. It could be blanked off completely.

STEP

Download on Printables

1

Parts needed

  • 11 x M3 10mm bolts with heatset nuts
  • 4 x M6 profile nuts
  • 4 x M6 30mm hex socket bolts to join the main bracket assemblies
  • 2 x M6 30mm hex socket bolts to attach to rig
  • 2 x M6 20mm hex socket bolts to attach to rig
