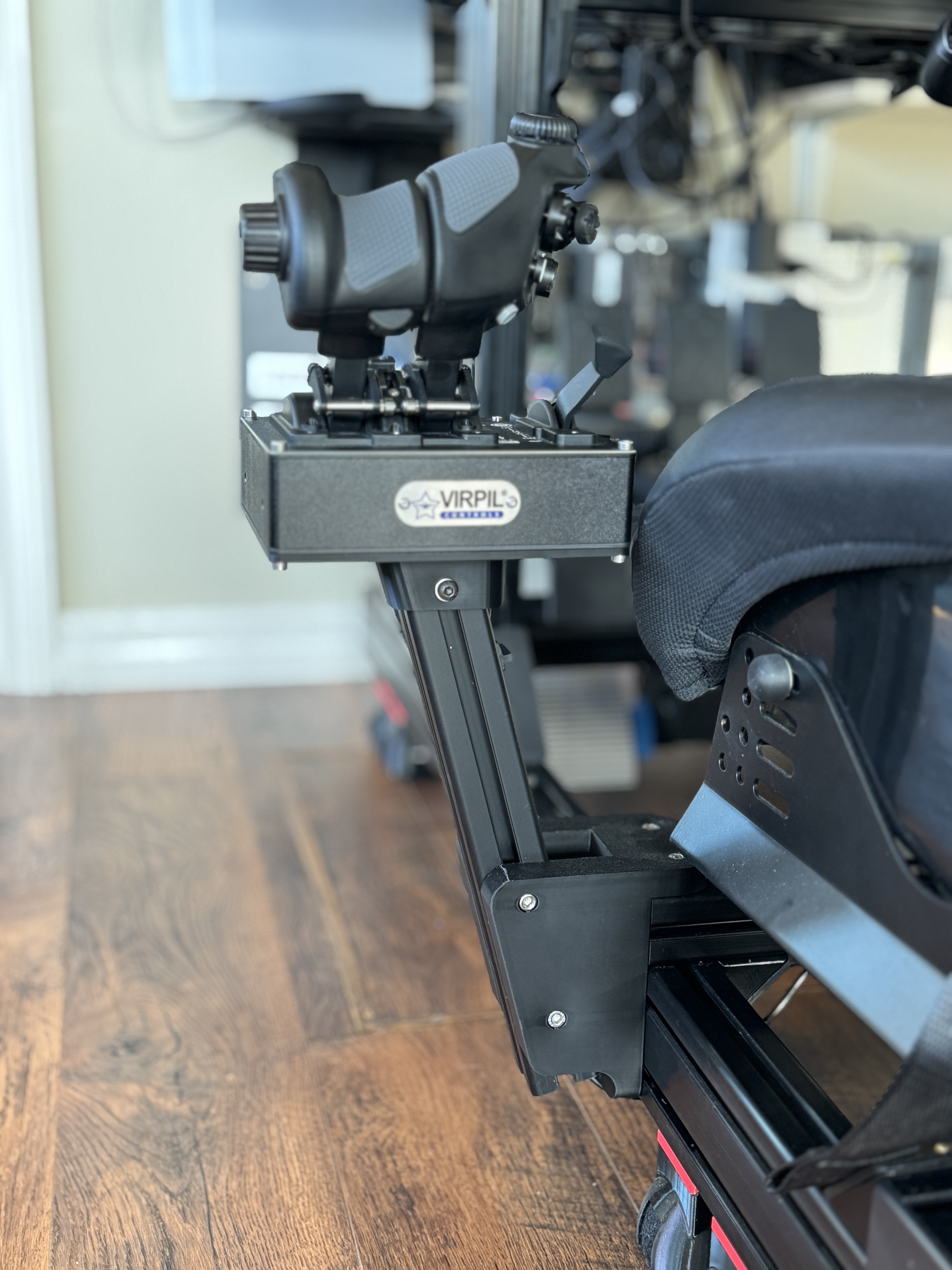

Virpil CDT-VMAX profile bracket V2

V1 worked fine but I wanted more height, it could have been 3D printed (my WarBRD QR is as tall) but I want to try something new.

• For 40-series profile

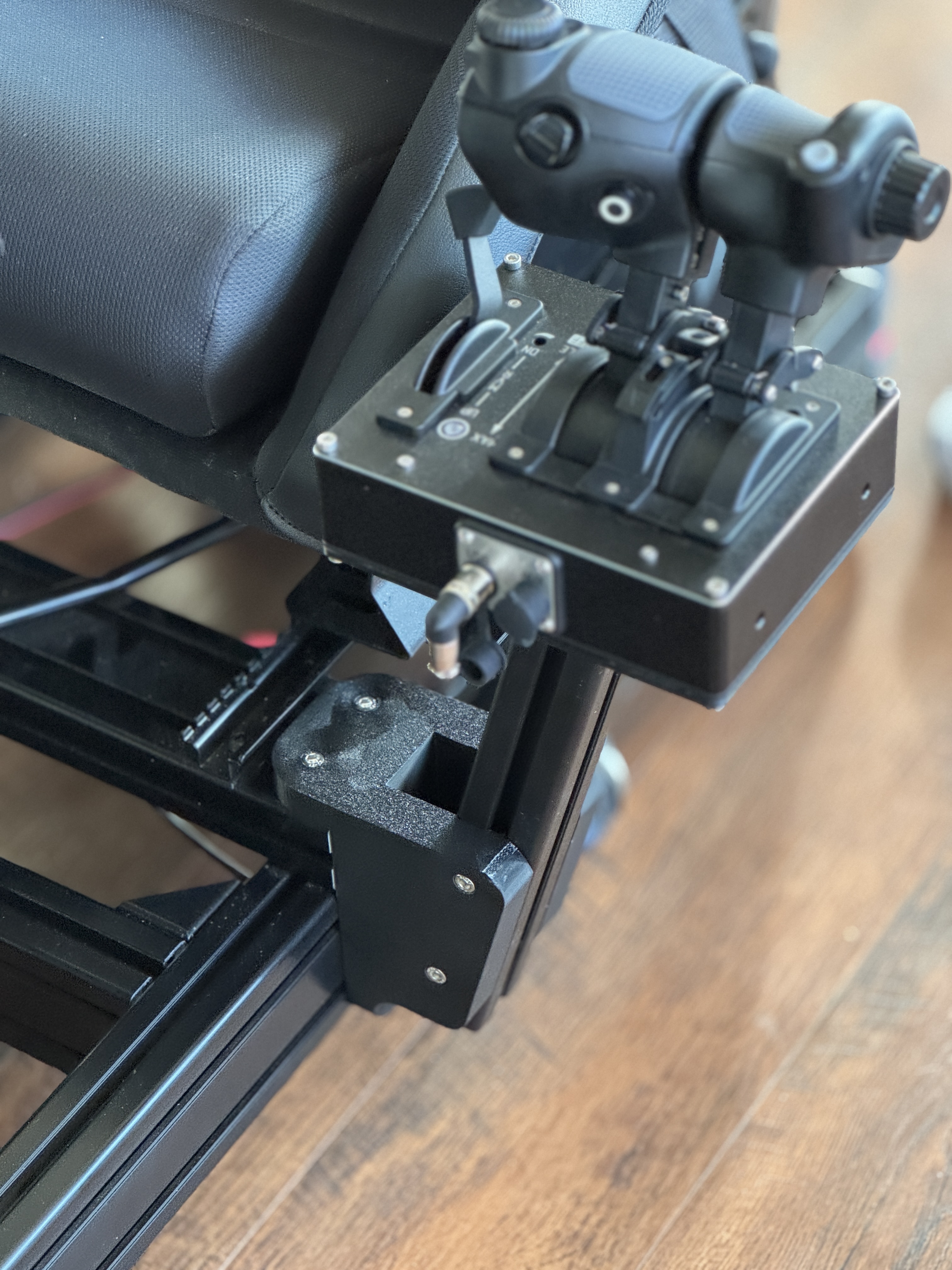

• The 4040 can pass through the lower bracket making it somewhat height adjustable (limited by distance to floor)

• Print with strength profile. 5 or 6 walls. PLA is fine. Don’t skimp on filament, it needs to be rigid

• Two lower brackets variants included, use depending on rig attachment point as illustrated in the rendering

• Tolerances are tight on the 4040 interfaces, especially the top socket. Print calibration.stl before committing to the whole thing and adjust accordingly. It prints correctly with no adjustment on my BBL A1

• Download on Printables

Parts needed

• 8 x M6 profile T-nuts (spring loaded is a must on the lower bracket to rig bolts)
• 2 x M6 15mm hex socket bolts
• 4 x M6 20mm hex socket bolts
• 4 x M6 25mm hex socket bolts
• 4040 profile - I used 280mm
